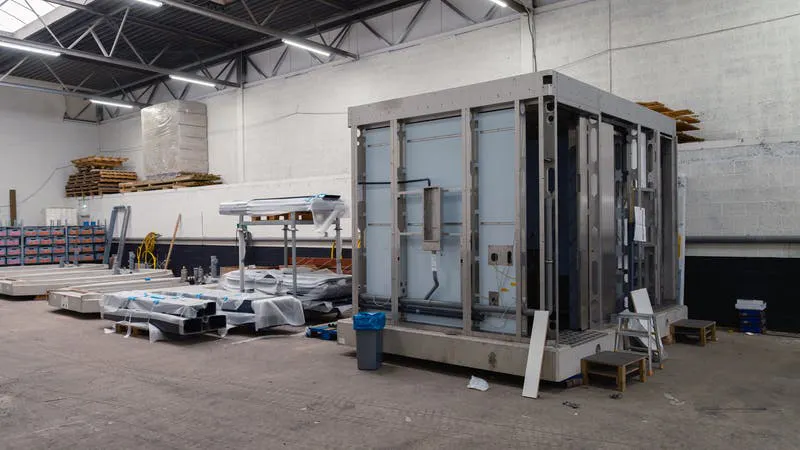

Механики должны координировать работу на этапе проектирования модульных зданий

Mechanical Systems Planning in Modular Buildings: What Contractors Need to Coordinate Before Installation Key Highlights - Mechanical coordination should begin early to address major interfaces and prevent costly modifications later in the project - Clear division of responsibilities between factory-installed components and site work is essential for smooth progress - Designing for transportation and installation tolerances helps accommodate site conditions and reduces on-site adjustments Maintenance access should be prioritized to facilitate long-term serviceability of installed systems One of the first lessons that becomes clear on a modular project is that mechanical coordination cannot be left until the modules are nearly ready for production. In conventional construction, there is sometimes room to resolve a pipe route, adjust a duct location, or move a connection after work has already started on site. With modular construction, that flexibility becomes much smaller once the units enter production. Walls may already be closed, finishes may be installed, and the module itself may soon be prepared for transport. That changes the role of the mechanical contractor. The earlier the contractor becomes involved, the easier it is to avoid expensive adjustments later. For plumbing and HVAC systems in particular, the important questions are often very practical. Where will services pass from one module to another? Can installers reach the connection after the units are placed? Is there enough space to maintain a valve or replace a piece of equipment several years from now? Will a factory-installed component tolerate transport without being damaged? Those questions sound simple, but they have a major effect on how smoothly the project moves from the factory to the jobsite. Mechanical Coordination Has to Start Early The biggest difference is probably the timing of decisions. Before production begins, the project team should have a reasonably clear understanding of HVAC equipment locations, pipe and duct routes, penetrations, drainage requirements, utility connections, controls, and access for maintenance. This does not mean every minor field condition can be predicted. It means the major interfaces should not be left unresolved. For example, moving a pipe penetration a few inches on an open construction site may be straightforward. Making the same change after a structural member has been fabricated and interior finishes have been completed inside a module can be much more disruptive. Mechanical contractors therefore need to be part of coordination discussions with the modular manufacturer, structural engineer, architect, electrical contractor, and site team before production reaches that point. Decide What Belongs in the Factory and What Belongs on Site There is no single rule for how much mechanical work should be completed in the factory. On some projects, a large portion of the plumbing, piping, ductwork, fixtures, controls, or equipment can be installed before the modules leave the production facility. On others, transportation restrictions or site conditions mean more work has to remain for the field crews. What matters is that the division of responsibility is clear. The factory team should know exactly where its work stops. The site contractor should know exactly where field work begins. I have found that connection points deserve particular attention. A connection may look perfectly logical on a drawing but become awkward once two modules are placed side by side and access is limited. Before finalizing these locations, the team should think about how an installer will actually reach the joint with tools, how much adjustment will be available, and whether another module or finish will block access later in the installation sequence. Field Tolerances Still Exist Factory production can be very accurate, but the building still has to meet real site conditions. Foundations have tolerances. Underground utilities may not always be located exactly where expected. Modules experience movement during transport and lifting. Mechanical connections need enough flexibility to deal with those conditions without forcing crews into improvised modifications. Flexible connectors, accessible unions, adjustable supports, and sensible transition details can make a noticeable difference during installation. The installation sequence matters as well. Some connections need to be completed before the next module is positioned. If that sequence is not considered during design, the crew may discover that a connection is technically possible but physically inaccessible. That is the kind of problem that is much easier to solve in a coordination meeting than on a crowded jobsite. Transportation Should be Part of the Mechanical Discussion Another issue that sometimes receives too little attention is transportation. A mechanical installation that performs perfectly inside a completed building still has to survive the journey from the factory to the site. Pipes, equipment, fixtures, ductwork, and supports can be subjected to vibration and movement during transportation. Larger components may need temporary bracing. Some delicate items may simply make more sense to install after the module arrives. External equipment can create another issue: transportation dimensions. If rooftop or side-mounted components increase the overall shipping height or width, the logistics team needs to know before fabrication is complete. In certain cases, the best technical decision is not to maximize the amount of factory installation. It is to install the right components in the factory and leave the components that create transportation or access problems for the site. Test in the Factory, Then Test Again on Site Factory production creates a useful opportunity for quality control. Before the modules leave the facility, teams can inspect accessible piping, supports, ductwork, insulation, penetrations, equipment mounting, and other mechanical work that may later become concealed. Depending on the system, pressure testing or other checks may also be carried out before shipping. But factory testing should never be treated as the final test. The building changes during transportation and installation. Modules are lifted, connected, aligned, and tied into site utilities. New joints are created between factory-built and field-installed systems. Those interfaces need to be checked again. A practical commissioning plan should therefore separate what is verified before shipping from what must be tested after installation and what will be confirmed during final commissioning. Think About Commissioning Before the System is Finished Commissioning becomes much easier when the team plans for it during design. Test points, isolation valves, balancing devices, control components, dampers, and access panels all need to remain reachable. It is frustrating for a commissioning technician to discover that the component he needs to adjust is hidden behind a finished panel with no reasonable access. For HVAC systems, the final work may include equipment startup, balancing, controls verification, airflow measurements, and checking performance under operating conditions. Plumbing systems may require pressure testing, flushing, and other checks depending on the project and local requirements. These activities should influence the layout from the beginning rather than being considered only after installation is complete. Maintenance is Just as Important as Installation A modular building may be installed quickly, but it still needs to operate for years. This is where contractors can prevent another common problem: designing only for the installation phase. Filters have to be replaced. Valves need to be reached. Pumps and controls eventually need service. Equipment may one day need to be removed completely. A component can be easy to install in the factory while the module is open and surprisingly difficult to replace after walls, ceilings, furniture, and neighboring modules are in place. It is worth asking one simple question during coordination: if this component fails five years from now, can somebody actually get it out? That question often leads to better access panels, clearer maintenance zones, or different equipment locations. Modular Construction Moves Decisions Earlier Modular construction does not make mechanical work less technical. What it changes is when the important decisions have to be made. The project benefits most when the mechanical contractor is involved early enough to influence routing, connections, access, testing, transportation, and commissioning. When that coordination is done properly, factory installation can reduce site congestion and shorten installation time. When it is not, relatively small mechanical issues can become expensive field problems because so much of the building is already complete. For mechanical contractors entering a modular project, a useful approach is to look beyond the drawings and think through the entire path of the building: factory production, transportation, lifting, connection, commissioning, and long-term maintenance. The earlier those stages are considered together, the fewer surprises the site team is likely to face. About the Author Amr Al-Lahham Amr Al-Lahham works with Prefabex, a manufacturer of modular and prefabricated building systems. His work involves modular construction applications and the practical coordination issues that affect manufacturing, transportation, installation, and project delivery.
