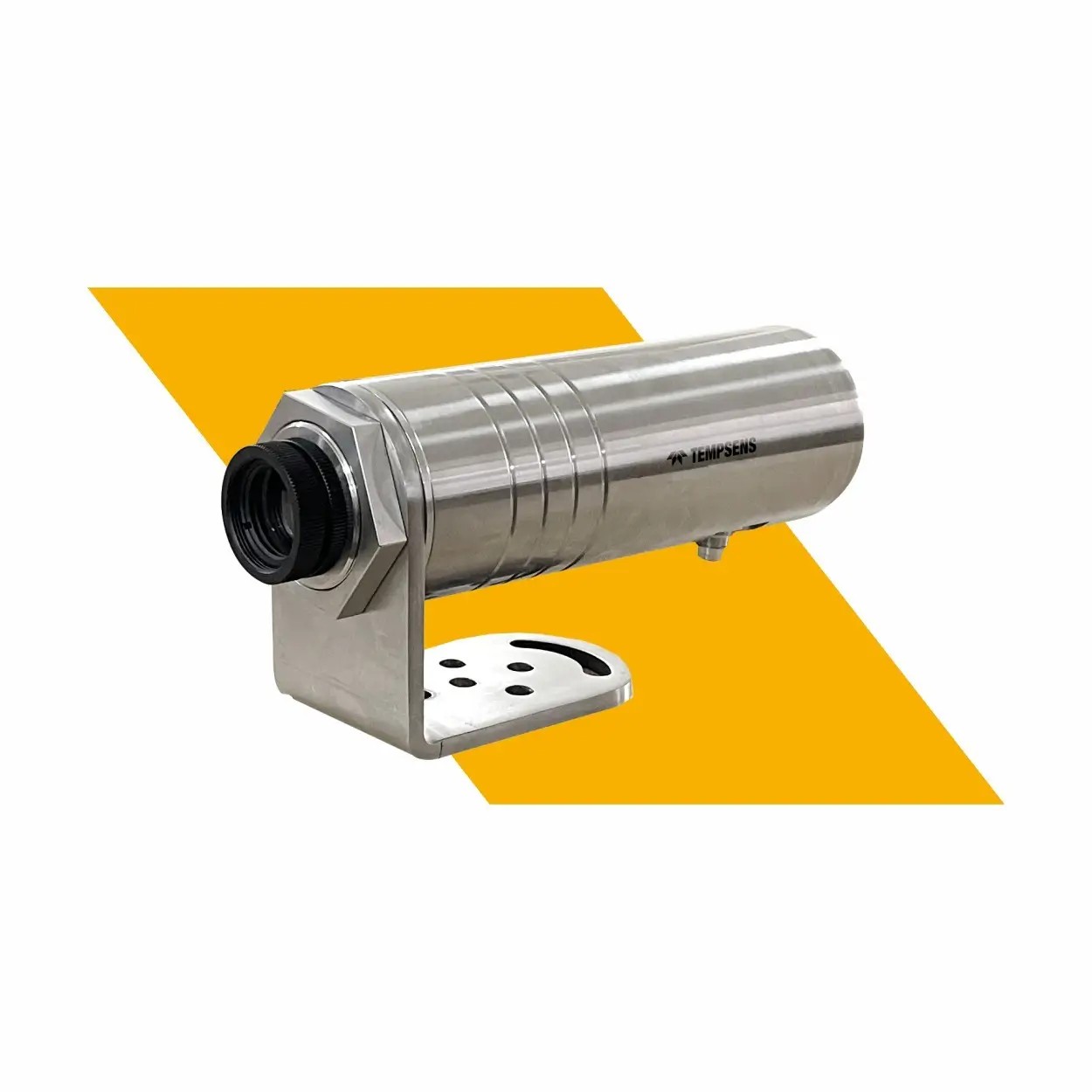

Когда бесконтактный пирометр превосходит контактные датчики температуры

When Is a Non Contact Infrared Pyrometer Better Than an RTD or Thermocouple? Table of Contents Quick Summary - A non contact infrared pyrometer measures temperature without touching the target, which makes it the practical choice for moving, extremely hot, or hard-to-reach surfaces. - RTDs (like Pt100 elements) give high accuracy and long-term stability for contact measurement, but only where the sensor can actually stay mounted on the process. - Thermocouples cover wide temperature ranges and hold up in rugged, high-vibration environments where a contact sensor still makes sense. - A non contact infrared pyrometer becomes the better fit specifically when physical contact would damage the sensor, disturb the product, or simply isn't possible. - The right choice comes down to temperature range, target material, motion, accessibility, required accuracy, response time, and how the sensor will actually be installed. Think about a hot strip mill. Steel is moving through the line at speed, glowing orange, and someone in the control room needs a reliable temperature reading in real time. Bolt a thermocouple onto that strip and you'll either wreck the sensor or interrupt production within minutes. It's the exact scenario that pushes plants toward non-contact measurement in the first place. There are three technologies in play here, and each works on an entirely different principle: - RTD (Resistance Temperature Detector): measures temperature through the predictable change in electrical resistance of a metal element, typically platinum. - Thermocouple: generates a small voltage from the junction of two dissimilar metals, with the voltage varying by temperature. - Infrared pyrometer: measures the thermal radiation a surface emits, with no physical contact required. None of these is inherently "better." Good sensor selection starts with the measurement problem on the plant floor, not with whatever's sitting in the supplier catalogue. Once you frame it that way, the decision usually makes itself. When Is a Non Contact Infrared Pyrometer the Better Choice? 1. The Target Is Moving Steel strip, hot billets, glass sheet, paper webs, extruded plastic film. Anything traveling through a continuous process line is a poor candidate for a contact sensor. A thermocouple or RTD riding on a moving surface wears out fast, and the friction itself can mark or damage the product. A non contact infrared pyrometer sidesteps that problem entirely: it reads the surface temperature from a fixed position while the material keeps moving underneath it. For continuous lines, removing that one mechanical contact point often removes the single biggest source of unplanned sensor failures. 2. The Surface Is Too Hot for Practical Contact Measurement Furnaces, kilns, forging operations, heat treatment lines, glass tanks. Push a contact sensor into these environments, and you're fighting sheath material limits, mounting stress, and shortened service life. A non contact infrared pyrometer can monitor the same surface from a safe distance, provided the conditions actually support it. That's an important qualifier, not just a caveat for the sake of one. Emissivity, target size, the optical path, and the instrument's own temperature rating all need checking before anyone assumes infrared will simply outperform contact measurement at high heat. 3. The Target Is Difficult or Dangerous to Reach Inside a furnace. On rotating equipment. Up on an elevated line. Near energized electrical gear. These are places where running a sensor lead or servicing a probe puts people or equipment at risk. A pyrometer can sit outside the hazard zone entirely while still reading the target. Across the UAE and wider Gulf region, this comes up constantly in oil and gas, petrochemical, power generation, and steel processing, where hazardous-area classification alone can rule out a lot of contact sensor placements. 4. Fast Temperature Changes Matter Where temperature swings quickly, and someone needs to see that change as it happens, a fast-responding pyrometer can be genuinely useful. Heating and cooling cycles, continuous metal processing, furnace zone monitoring, and in-line product inspection. Don't take response time on faith. It varies by instrument and configuration, so confirm it against the actual datasheet rather than a general assumption. When an RTD or Thermocouple Is Still the Better Choice Choose an RTD When Accuracy and Stability Are the Priority For process vessels, pipes, tanks, and controlled manufacturing processes, an RTD (commonly a Pt100 element) is often the right call. It's stable, it's accurate, and once mounted correctly, it stays put. Here's the key distinction worth remembering: an RTD reports the temperature at the exact point where it's installed. A pyrometer reports the temperature of a surface area within its field of view. Those are two different measurements, not two ways of getting the same answer. Choose a Thermocouple for Wide Temperature Ranges and Rugged Applications Thermocouples earn their place through range and toughness. Depending on type, and there are several worth knowing (Type K, Type J, Type N, Type R/S for higher-temperature work), they cover broad spans, hold up under vibration, and respond quickly in the right configuration. There isn't one clean temperature ceiling to quote here; it depends on the type, the sheath, and how it's installed. What Can Make an Infrared Pyrometer Give the Wrong Reading? Benefits are only half the story. Here's where things go wrong in the field. Emissivity. This describes how effectively a surface radiates infrared energy compared to a theoretical perfect emitter. Oxidized steel and polished steel don't read the same way, even at identical temperatures. Get the emissivity setting wrong and the reading drifts, sometimes by a lot. Target size and distance. The target has to fill the instrument's field of view. This is governed by the distance-to-spot ratio (D:S), a spec every pyrometer manufacturer publishes. A 12:1 ratio, for example, means that at 12 units of distance the measured spot is roughly 1 unit across. Aim at something smaller than that spot, and the reading picks up background temperature too, which throws the number off. Steam, dust, smoke, and obstructions. Infrared measurement is an optical measurement. Anything blocking the line of sight between the sensor and target, such as steam off a quench tank or dust in a kiln, will affect the reading. Reflections. Shiny or polished metal surfaces reflect radiation from surrounding heat sources, and the pyrometer can't always tell the difference between the target's own emission and a reflection off something nearby. A pyrometer is only as reliable as the optical conditions around its measurement point. That's worth repeating to anyone who assumes non-contact automatically means simpler. Calibration matters here too. Wideband infrared thermometers are typically verified against ASTM E2847, the standard test method covering calibration and accuracy verification for these instruments below 1000°C. If a supplier can't speak to how their pyrometers are calibrated or traced, that's a fair question to keep asking before you buy. Final Takeaway A non contact infrared pyrometer is usually the better choice when the target is moving, extremely hot, inaccessible, or simply unsuitable for physical contact. RTDs and thermocouples remain strong choices whenever direct measurement is practical, and their specific accuracy, range, or construction advantages fit the process. Neither side of that equation is going away anytime soon; they solve different problems. Tempsens designs and manufactures industrial temperature sensing solutions, including non contact infrared pyrometers alongside RTDs, thermocouples, and other contact technologies. That range matters here, because it means the conversation can start with the application rather than with one product line looking for a use case. It's to help you land on whichever measurement technology actually fits your process. FAQ Are infrared pyrometers accurate for industrial temperature measurement? Yes, within the right conditions. Accuracy depends on correctly set emissivity, adequate target size relative to distance, a clear optical path, and regular calibration, typically verified against standards like ASTM E2847 for wideband instruments. Skip any of those and the reading suffers. Can infrared pyrometers measure the temperature of moving objects? Yes, and it's one of their strongest industrial applications. Because there's no physical contact, a non contact infrared pyrometer can track a moving strip, sheet, or billet continuously without wearing out or interfering with the product. What factors affect infrared pyrometer accuracy? Emissivity, distance-to-spot ratio, target size, reflections from nearby heat sources, atmospheric interference like steam or dust, and instrument calibration all play a part. Get any one of these wrong and the number on the display stops matching reality.
