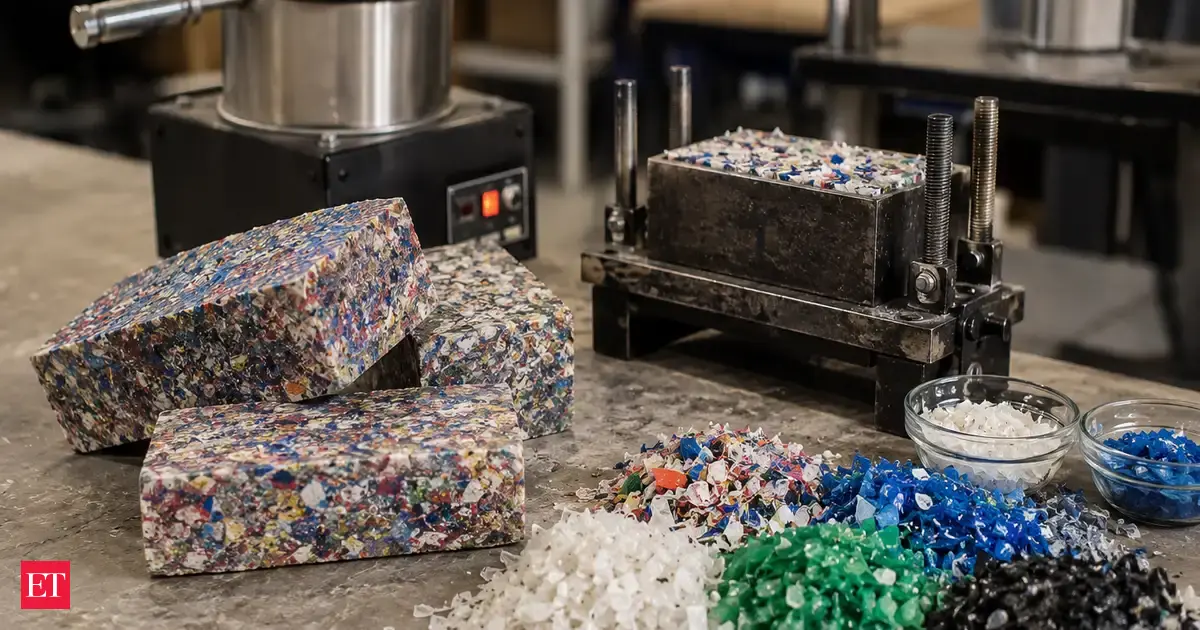

Студенты Дьюкского университета создали строительные блоки из бытового пластика, выдерживающие нагрузку в 5000 ньютонов

The team selected plastics #1, #2, #4, and #5 for testing That idea was the basis for a project carried out by Bass Connections at Duke University. It was a group of civil engineering, environmental science and economics students working under the guidance of faculty members of the Nicholas School of the Environment and the Pratt School of Engineering. The name of the project was ‘Making Recycled Plastic Bricks with Optimized Accessibility,’ and it was conducted during the 2021-2022 academic year with the aim of testing whether regular household plastic waste can be recycled to produce bricks for construction. Firstly, they determined types of plastic materials that would serve as the basis for the bricks. Those were plastic types #1 (PET), #2 (HDPE), #4 (LDPE) and #5 (PP), as specified in the project report. Types of plastic were scored on accessibility, environmental benefits, shredability and meltability, and energy consumption. Those four types were chosen as the basis for the bricks. Another type of plastic, plastic #6 (HIPS), was also considered, but it scored lower on the group's overall composite index, accessibility, environmental benefit, and energy use, alongside shredability and meltability and was set aside in favor of the four selected resins. The full setup cost $248.84 in materials It is not the choice of plastics alone, but the affordability with which the required processing equipment can be built that sets the project apart. The total price of materials used was $248.84 for a shredding phase, melting phase and molding phase. The list of tools included regular scissors, a guillotine paper trimmer, and a modified credit card shredder for use on plastic bags and films. Melting took place in a toaster oven placed inside a fume hood, while the melted plastic was molded with the help of a regular bread pan lined with parchment paper. To give some perspective, the team's report compares this project to another one, the Precious Plastic brick-making kit, which in 2016 was priced at around $10,200 for a considerably more sophisticated setup and is still much harder to implement than the one proposed by the team. Moreover, since the plastic feedstock is household waste collected at no cost, the raw material itself is effectively free; it is the $248.84 fixed cost of the shredding, melting, and molding equipment that must be weighed against standard clay or concrete bricks, which typically cost several tenths of a dollar apiece to produce. The plastic bricks also offer several properties over conventional ones: they are thinner and lighter than standard masonry, offer notably better heat insulation, and flex rather than crack. The bricks held over 5,000 N of compressive force and 37 MPa of tensile strength However, the true test was the strength of the material. The bricks composed of plastics #1, 2, 4, and 5 had endured more than 5,000 newtons of compressive force without reaching the breaking point; rather, the number of newtons indicated the maximum pressure that the machine used by the group could exert. Additional tensile tests demonstrated the ultimate strength of the brick material as 37 megapascals. Such results, obtained on such a simple apparatus, provided preliminary evidence that homemade plastic bricks can bear meaningful loads under short-duration testing, though, as later sections make clear, this does not yet confirm how the material performs under sustained, real-world structural loads. HDPE bricks exceeded clay brick strength; PP bricks came close, in a 2022 study A somewhat industrial and separate approach to a similar concept is provided in the work of Kulkarni et al., published in 2022 in ‘Cleaner Materials’, an Elsevier journal, as described in the article on ScienceDirect. Unlike the previous example, the present research involved only two types of plastic, HDPE and PP, obtained from industrial waste in Maharashtra, India and formed into 190 by 90 by 90 millimeters bricks. The compression test results showed that HDPE bricks had a compressive strength of 11.19 MPa, while PP bricks had a compressive strength of 10.02 MPa, being similar to 10.5 MPa of a conventional first-class clay brick; the compressive strength of the HDPE brick was just slightly higher, while that of the PP brick was slightly lower. The recycling codes on products. Image credits: Wikimedia Commons Long-term durability and scalability remain untested Strength in one compression test is one thing; long-term durability is another. It must be noted here that the Duke team acknowledged that further research is required to gain insight into how the performance of the brick under continuous heavy load, continuous sun exposure, interactions with other building materials, as well as the effects of fire retardant, will work out. In addition, the above-mentioned study highlighted the fact that any attempt to scale the process beyond the bread pan and toaster oven setup would entail resolving issues such as the uniformity of the melting temperature and the size of the mold, issues not anticipated by the $248.84 setup. In comparison to the previous project, the Kulkarni research goes into somewhat greater depth since it involves the testing of a complete wall construction and its fire resistance; however, unlike Duke research, it uses one type of waste only rather than the mixture of waste generated in a normal household setting. Taking all this into account, what remains unknown in terms of practical use is whether the plastic bricks will be able to retain their strength under real conditions when it comes to years of exposure and interaction with contaminated plastic waste. (Catch all the US News, UK News, Canada News, International Breaking News Events, and Latest News Updates on The Economic Times.) Download The Economic Times News App to get Daily International News Updates. (Catch all the US News, UK News, Canada News, International Breaking News Events, and Latest News Updates on The Economic Times.) Download The Economic Times News App to get Daily International News Updates.
