Ученые провели контролируемые взрывы в Арканзасе для изучения сейсмических волн

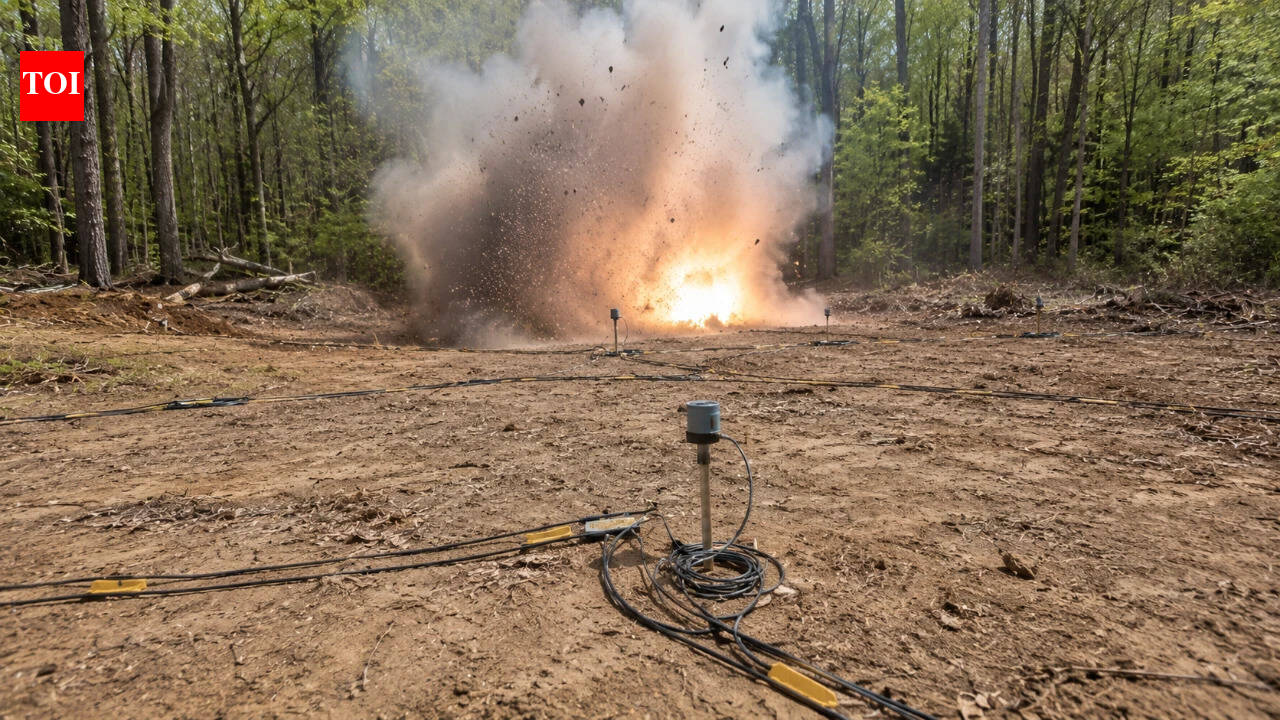

In October 2002, scientists working in the Mississippi Embayment created an unusual answer. Instead of waiting for an earthquake, they detonated two large borehole explosions beneath agricultural land in Arkansas and Tennessee and recorded the resulting ground motion with instruments placed close to the blasts and in arrays farther away. The experiment produced some of the strongest ground-motion recordings ever collected in the region, allowing researchers to study how seismic waves travel through the thick sediments beneath the Mississippi River floodplain. According to research from the US Geological Survey , the experiment was known as the Embayment Seismic Excitation Experiment (ESEE). It was designed to generate controlled seismic waves in the Mississippi Embayment, a region with a history of damaging earthquakes, most notably the 1811–12 New Madrid earthquake sequence. At the time, scientists had limited strong-motion recordings from natural earthquakes within the region's thick, unconsolidated sediments, making controlled explosions a way to collect detailed measurements of how seismic waves travelled through the basin. Two blasts, hundreds of sensors According to research in the Bulletin of the Seismological Society of America, the experiment involved two separate explosions. On 29 October 2002, researchers detonated a 1,134 kg chemical explosive near Marked Tree, Arkansas. The following night, a 2,268 kg explosion was set off near Mooring, Tennessee. Together, the two blasts used 3,402 kg of explosives. The charges were placed deep inside steel-cased boreholes, with the explosives occupying the lower part of holes about 50 metres deep. The researchers were not attempting to replicate a natural earthquake exactly. Instead, their goal was to generate controlled seismic waves and observe how they travelled through the sedimentary layers beneath the Mississippi Embayment. This distinction was important because explosions and earthquakes produce seismic energy in different ways. Even so, the waves generated by the blasts could provide valuable insights into how ground motion travels through the region. Scientists installed three-component accelerographs about 80 metres from each explosion source to capture the intense motion close to the blasts. They also established two linear arrays of eight accelerographs each. One array was positioned about 2.55 kilometres from the Arkansas explosion, while the other was approximately 1.2 kilometres from the Tennessee blast. The instruments were spaced 15 metres apart, allowing researchers to compare the same seismic waves as they passed across the arrays. The close-in instruments recorded exceptionally strong shaking. Vertical peak accelerations at stations near the explosions exceeded 2g, meaning the measured acceleration was more than twice the acceleration caused by Earth's gravity. The researchers noted that the data represented the highest-amplitude strong-motion recordings then obtained in the New Madrid Seismic Zone. Watching seismic waves cross the floodplain The experiment was valuable because the Mississippi Embayment contains a thick layer of relatively soft, unconsolidated sediment above harder basement rock. Such sediments can alter seismic waves as they travel through them, affecting their speed, amplitude and duration. The instruments recorded a succession of seismic phases, including high-frequency P waves and slower surface waves. Researchers were particularly interested in how these waves changed as they travelled across the sedimentary basin. The closely spaced instruments made it possible to examine whether different parts of the seismic signal varied. According to research published in the Journal of Seismology , scientists studying the New Madrid Seismic Zone found that the coherence of high-frequency seismic waves declined rapidly as the distance between recording stations increased. Using a 600-metre-long array of 19 seismometers near Mooring, Tennessee, the researchers found that vertical-component P waves remained coherent over nearly two horizontal wavelengths, while horizontal S waves became significantly incoherent at distances of about 0.2 wavelength and were almost completely incoherent by 0.5 wavelength. The findings suggest that the spatial variability of seismic motion can become important even across distances comparable to the size of large building foundations. remained coherent or became scattered over relatively short distances. In 2002, scientists detonated 3,402 kg of explosives beneath Arkansas and Tennessee. Image Credits: Wikimedia Commons. One of the most useful aspects of the experiment was its controlled nature. A natural earthquake cannot be scheduled, repeated at will or positioned exactly where scientists want it. The ESEE explosions provided known source locations and controlled source energies, while the network of instruments captured the resulting waves at carefully selected distances. This made the observations useful for understanding earthquake hazards in a region where future earthquakes could send seismic energy through the same thick sediments. The researchers noted that although the source was an explosion, aspects of the resulting strong motion could be related to waves radiated by earthquakes. In particular, large P-to-S wave conversions observed in the recordings could serve as a proxy for direct S waves generated by an earthquake. The experiment also demonstrated how dramatically ground motion can vary over relatively short distances. Near the explosions, instruments recorded accelerations greater than 2g, while the more distant arrays recorded peak accelerations of roughly 0.2g. The contrast illustrated how quickly the intensity of the signal changes with distance and how the properties of the ground influence the waves travelling through it. For earthquake engineers, that information matters because seismic hazard is not determined solely by how large an earthquake is. The geological material beneath a site can strongly influence the shaking that reaches the surface. The 2002 experiment was therefore an unusual form of controlled earthquake science. By placing explosives underground and surrounding them with sensitive instruments, researchers turned a pair of carefully planned blasts into a laboratory for studying seismic waves. The explosions lasted only moments, but the recordings they produced offered a detailed look at how earthquake-like ground motion moves through one of North America's important seismic regions.
